CTO/NAP/FAT Box Pole Mounted FTTA 10 Cores Pre-Connected Fiber Optic Terminal Box

Best price for pole mounted FTTA CTO/NAP/FAT box

Factory for Pre-Connected fiber optic terminal box

CTO/NAP/FAT Box Pole Mounted FTTA 10 Cores Pre-Connected Fiber Optic Terminal Box

CTO/NAP/FAT Box Pole Mounted FTTA 10 Cores Pre-Connected Fiber Optic Terminal Box,Experience streamlined fiber network deployments with the 10 Port CTO/NAP/FAT Box, a versatile and efficient solution that enhances the performance and reliability of FTTx networks.

Chat Now

Description

FTTA 10 Ports Mini SC Fiber Optical Termination CTO NAP Box

The 10 Port CTO/NAP/FAT Box, an essential component of the Fast Connect solution, designed to simplify and enhance fiber network deployments.

This product comes pre-connected with all inlet and outlet cables, eliminating the need for closure opening and fiber splicing. Equipped with hardened adapters on all ports, it offers a seamless and robust connection experience.With the 10 Port CTO/NAP/FAT Box, operators can deploy the Optical Distribution Network (ODN) efficiently without the need to splice fibers or open boxes. This results in improved service provisioning efficiency and a significant reduction in the total cost of operation (TCO) by 15-30%.

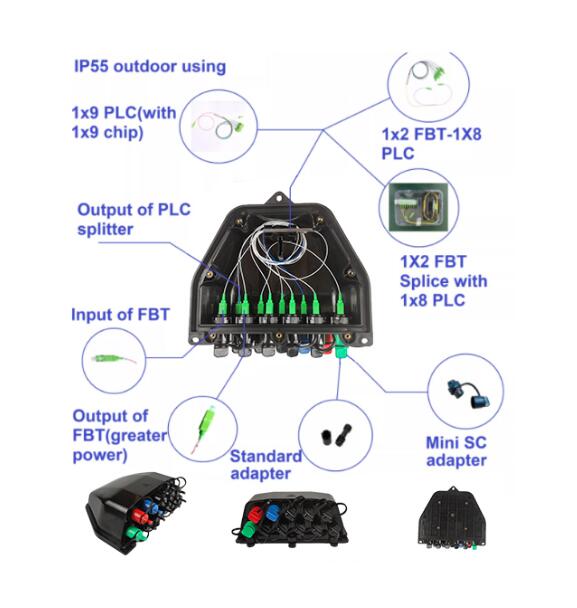

The SD-FTTA-10B outdoor waterproof fiber optic splitter terminal access box is purpose-built to accommodate up to 10 subscribers. It serves as a reliable termination point, enabling the connection of 1 x ISP cable to 1 x OSP cable and 8 x drop cables in the FTTx network system.

This innovative solution integrates fiber splicing, splitting, storage, and cable management into a solid protection box. By acting as the FDB 10-port fiber optic distribution box in the FTTx network, it efficiently meets the connectivity requirements of at least 10 users. The fiber distribution box ensures seamless fiber cable splicing, splitting, storage, and termination management within a secure enclosure.

Specifications

Dimension	195mm200mm80mm
Protection Level	IP55
Connector Attenuation(Insert, Swap, Repeat)	≤0.3dB
Connector Return Loss	APC≥60dB, UPC≥50dB, PC≥40dB
Operating Temperature	-40℃ ~ +60℃
Storage Temperature	-25℃ ~ +55℃
Connector Insertion and Removal Durability Life	＞1,000 times
Max Capacity	10 Core
Relative Humidity	≤95%(+30℃)
Atmospheric Pressure	62 ~ 101kPa
Installation	Wall-Mouted/Pole-Mounted

About Pre-connection Solutions

Pre-connection solution. In this solution, all boxes and optical cables are pre-installed in the factory, with no fusion points throughout the process; high-quality IP68 protection grade optical splitter boxes, fully sealed design, no need to repeatedly unpack for service activation; supporting MPO cables and 1F cables are all pre-installed with connectors, plug-and-play on site, and quickly deployed; boxes and cables are fully decoupled and can be constructed in parallel. The F.ODN pre-connection solution greatly improves the installation efficiency of ODN products, reduces labor costs by 60%, and improves network fault recovery efficiency by 90%.

Quality Certification

Hot Tags : Pre-Connected fiber optic terminal box 10 Cores Pre-Connected fiber optic terminal box Fiber optic NAP box Pole mounted FTTA CTO/NAP/FAT box Fiber optic CTO box Fiber optic FAT box
