Fiber Optic OprTap Waterproof 8 Ports Multiport Service Terminal Box MST Terminal Box
FTTX Fiber enclosure waterproof box 4/8/12/24 port OprTap MPO SC fiber Optic FTTH terminal box IP68 with adapter input. FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

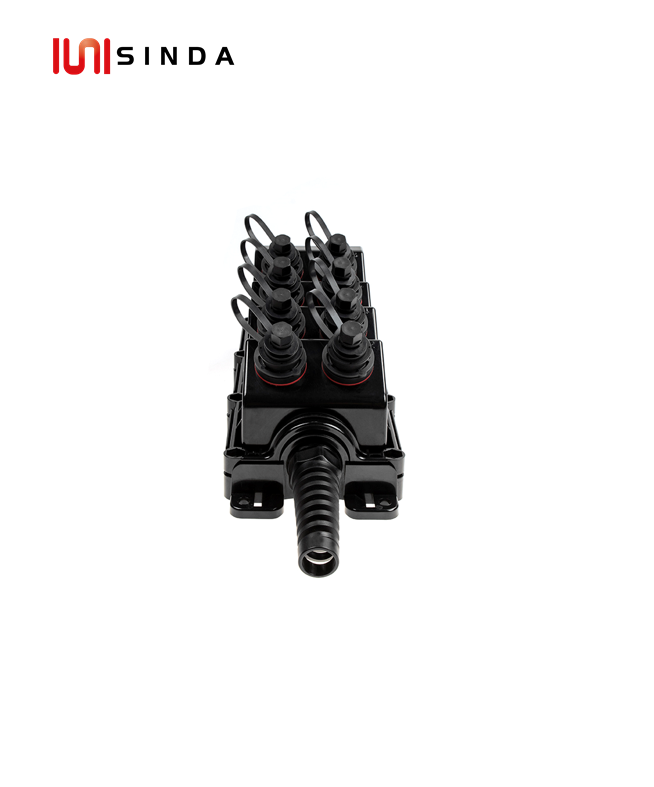

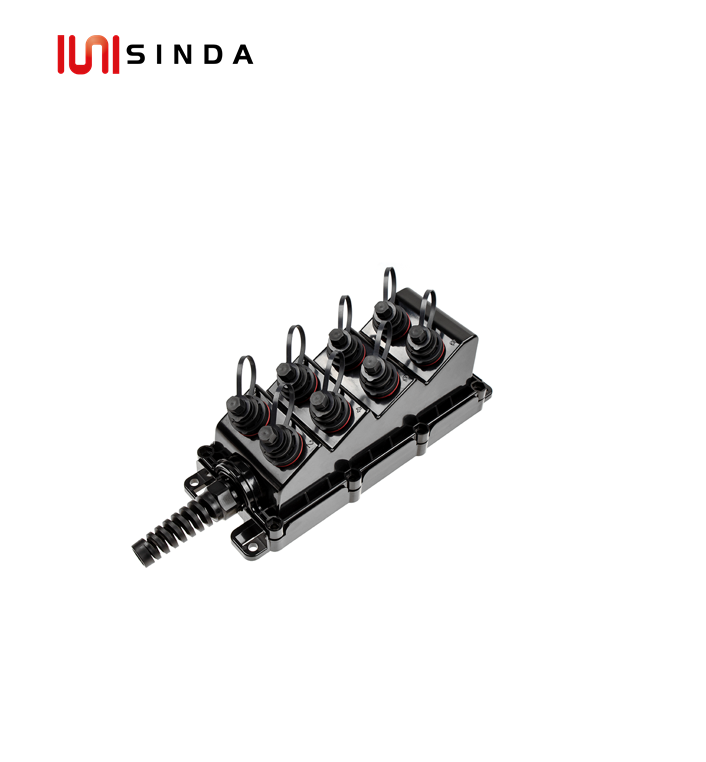

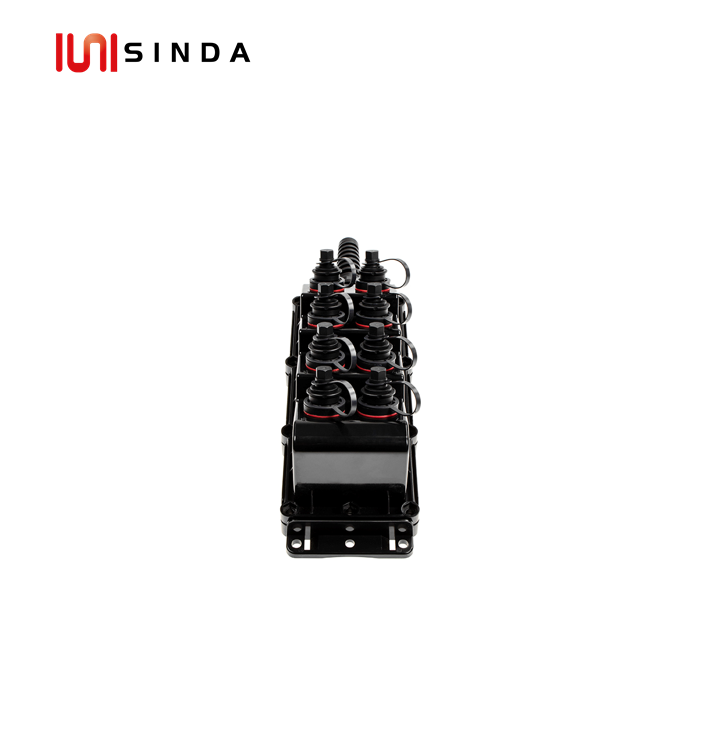

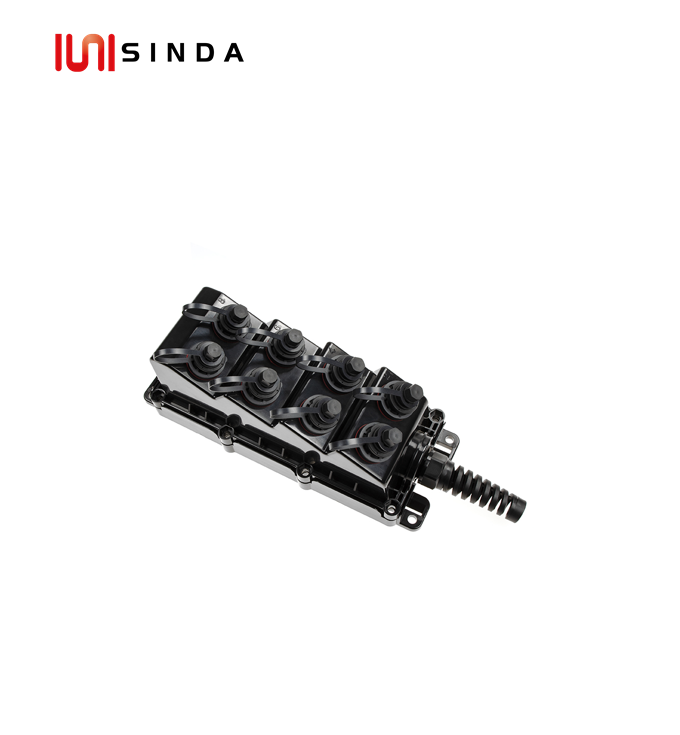

FTTA Waterproof 8 Ports Multiport Service Terminal (MST) box
Sinda Service Terminal (MST) Box is used for access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. MST box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. MST box not only used in FTTH field, but also used in FTTA or other harsh environment.
Feature
Factory terminated for high performance;
Plug and play adapter ports, fully compatible with OprTap and H-connector;

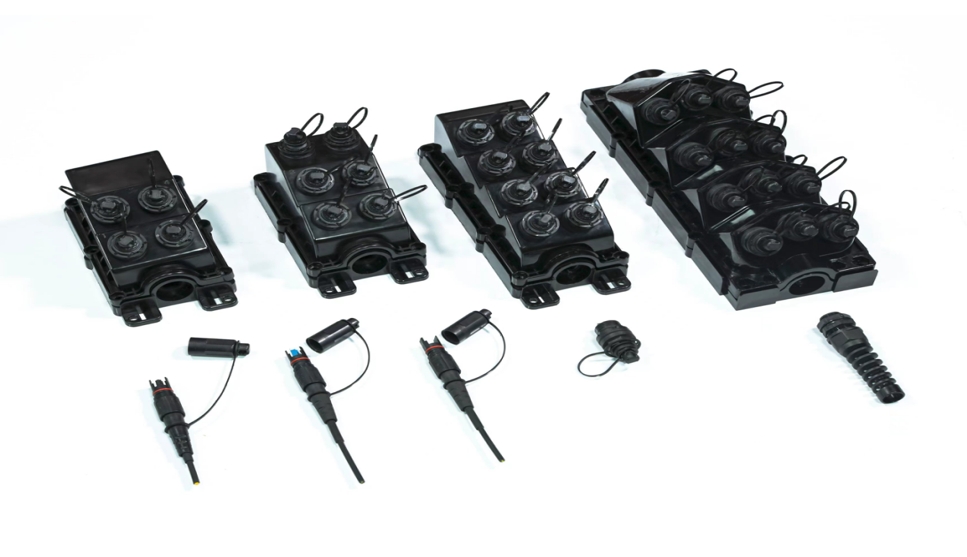

2, 4, 6, 8, 10, 12, 16 18 ports are available;
Stub pigtail length from 10 ft to 1750 ft available;
SST, ROC or 5.0mm round input stub cables;
IP-68 waterproof protection.
Specifications
Model Number | 8 port |
Type | Fiber optic terminal box |
Color | Black |
Cable Jacket Material | LSZH,PE or TPU |
Round cable OD | 5.0mm to 14mm |
Flat cable dimension | 4.6×8.9mm |
Cable crush resistance | 200N/cm long term |
Cable Type | Hybrid or non-hybrid |
Working Temperature | -40~85℃ |
Application
FTTX /FTTASystems;
PON Networks;
CATV Links;
Optical Signal Distribution.
