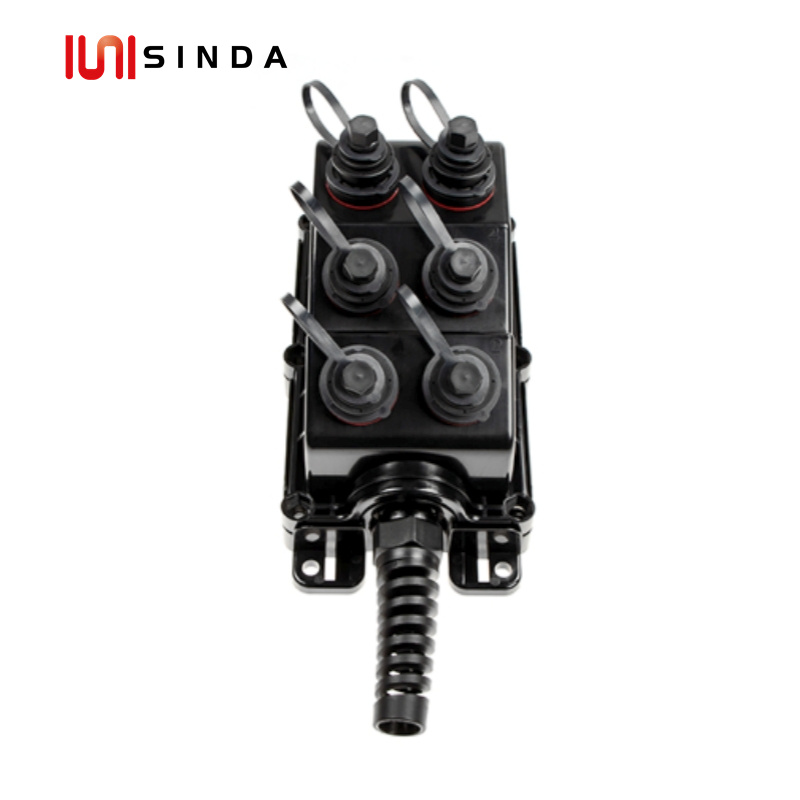

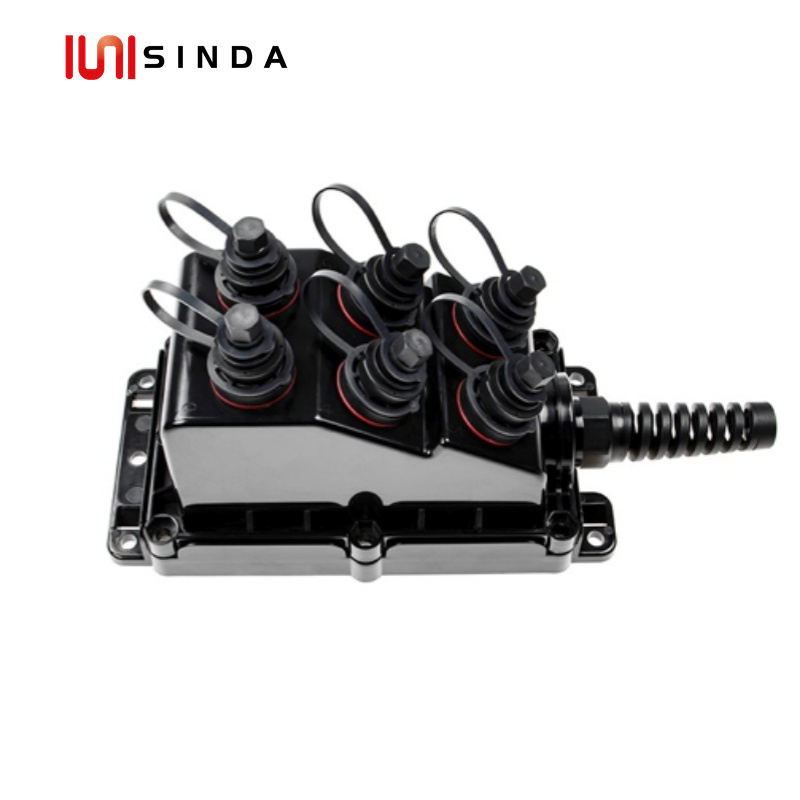

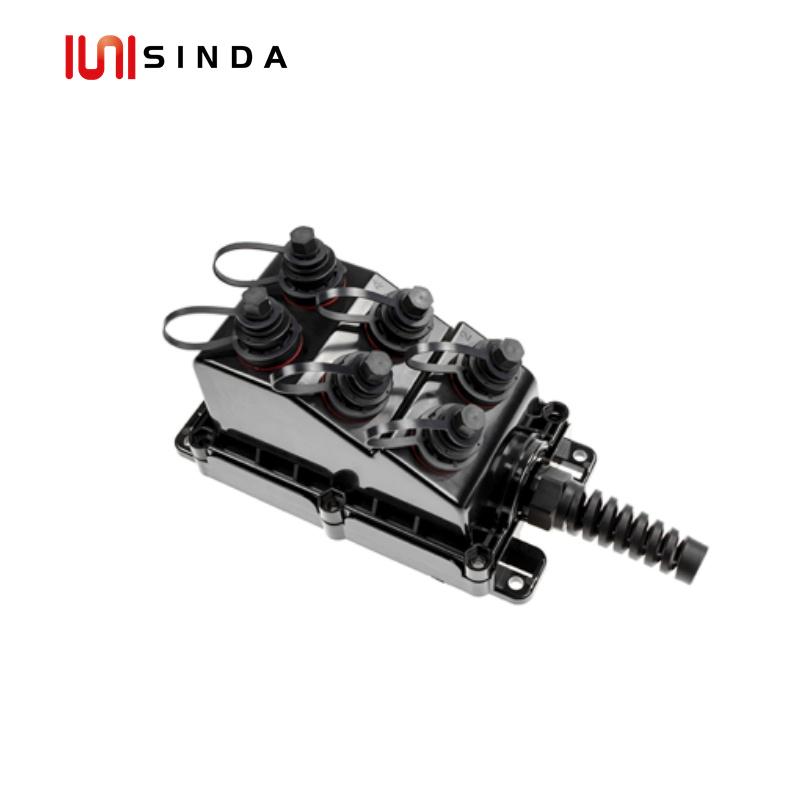

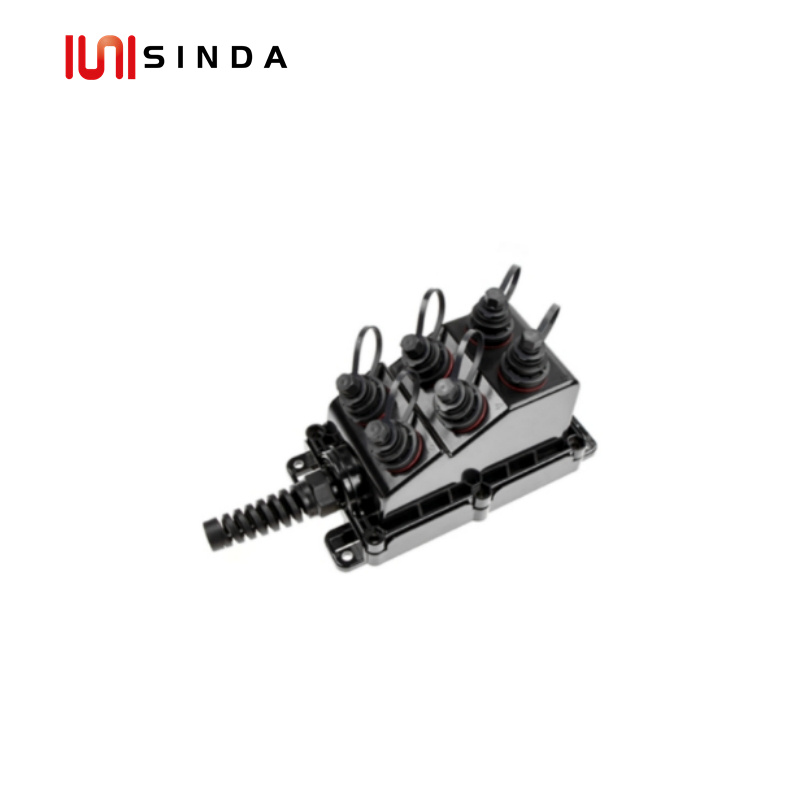

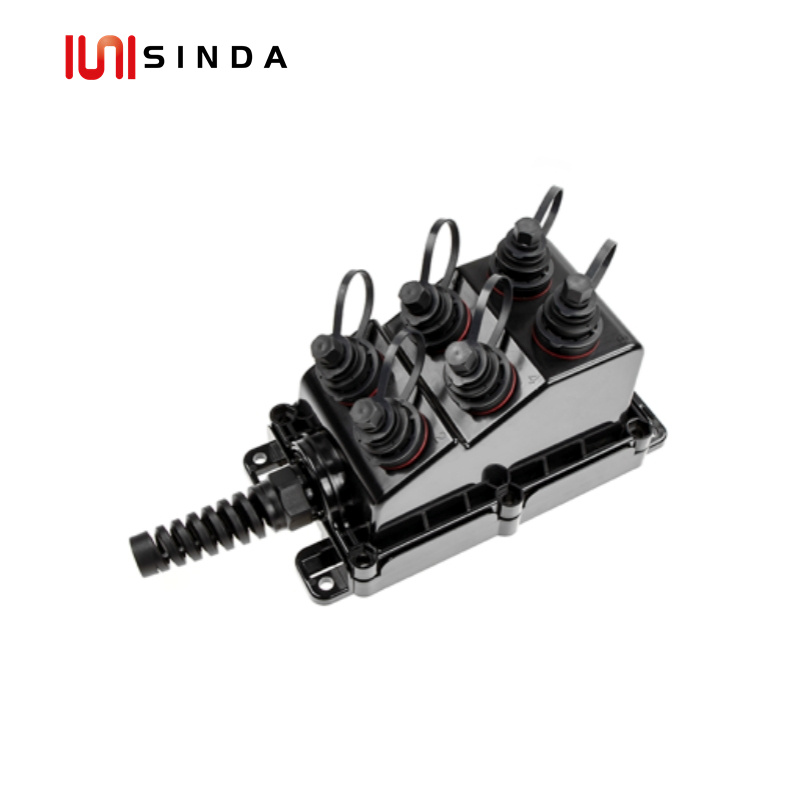

Fiber Optic OprTap Waterproof 6 Ports Multiport Service Terminal (MST) Box

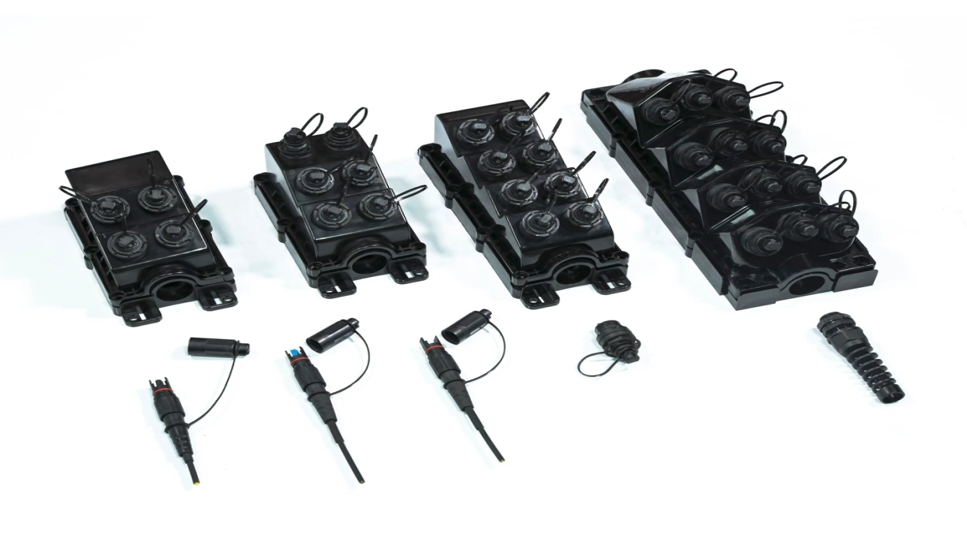

4 PORT, 6PORT, 8PORT, and 12 PORT Waterproof OprTap  Multiport Service Terminal Box

Sinda Service Terminal (MST) Box is used for access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. MST box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. MST box not only used in FTTH field, but also used in FTTA or other harsh environment.

Feature

Factory-sealed or field assembly.
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multi-fiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP67 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time

Specifications

Application

FTTX /FTTASystems;
PON Networks;
CATV Links;
Optical Signal Distribution.
