4/6/8/12 Ports OprTap Multi Service Terminal(MST) Fiber Optic Enclosure

4/6/8/12 Ports OprTap Multi Service Terminal(MST) Fiber Optic Enclosure is equipped with hardened adapters and is fully compatible with OptiTap. Designed for efficient tower and FTTH deployments, the MSTs boast a robust IP68 rating, ensuring full protection against outdoor elements in any environment. For added convenience, each MST is accompanied by an easy deployment mount, facilitating wall mounting or pole mounting options.

Chat Now

Description

4/6/8/12 Ports (MST) Fiber Optic Enclosure

Sinda Service Terminal (MST) Box is used for access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. MST box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. MST box not only used in FTTH field, but also used in FTTA or other harsh environment.

Feature

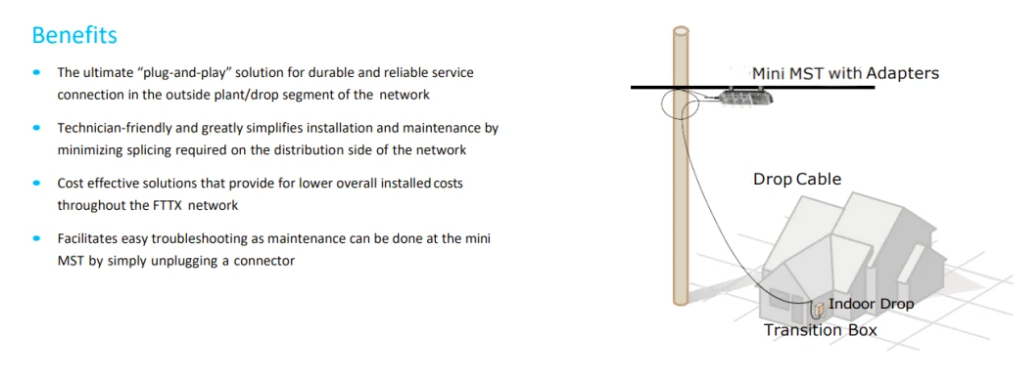

Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.
Factory-terminated IP68-rated, high-quality, high-performance connector.
Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments；
Kind of mounting bracket allows for a wide range of mounts.

Specifications

Port	4/6/8/12
IP Rate	IP68
Components Compliant	RoHs
Operating Temperature	-40℃ ~ +85℃
Stub Type	Stub Tail
Mounting Method	Hand-hole, Pedestal, Pole, Strand, Aerial

Reflectance Typical	-65dB
Insertion Loss Typical	≤0.15dB
Adapter Type	SC/APC Hardened Adapter, Compatible with Corning OptiTap and H Connector, OprTap Connectors

Fiber Mode	G657A2
Fiber Count	12F
Wavelengths	1310nm/1550nm
Maximum Attenuation	0.35dB/KM; 0.25dB/KM

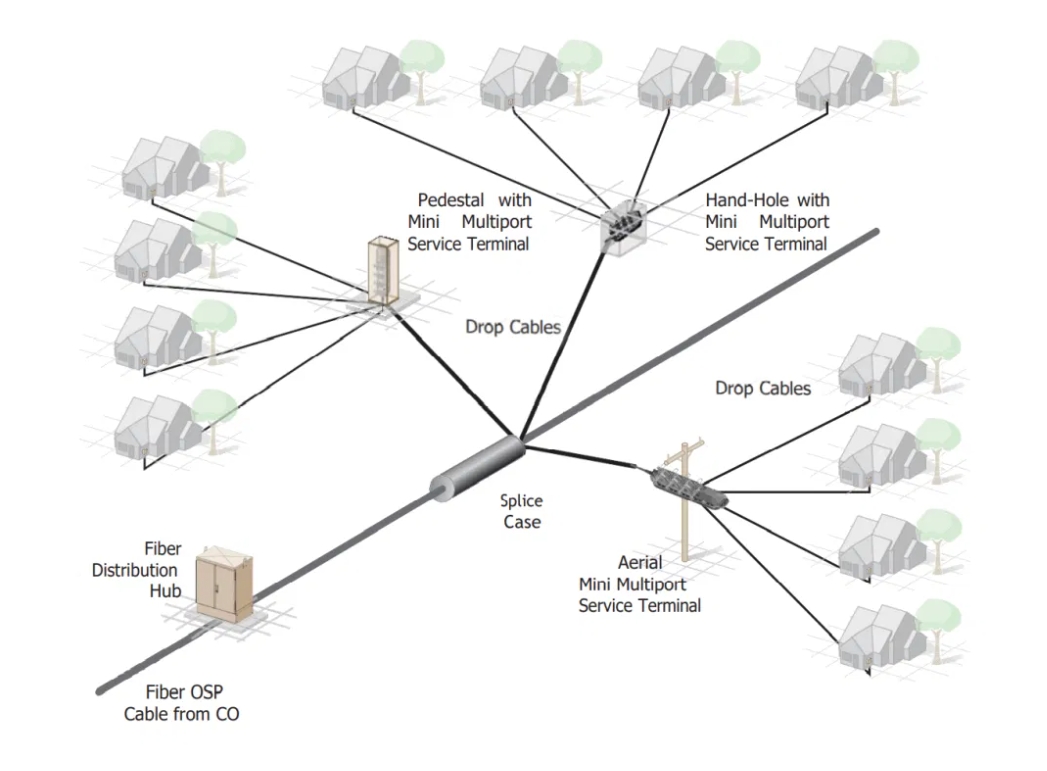

Application

Multi-purpose Outdoor；
For Connection between distribution box and RRH；
Deployment in remote radio head cell tower applications；
FTTA, FTTH, FTTP.
