9 Port NAP Fiber Opitcal Fiber Access Terminal FTTA FastConnect Enclosures With 1x8 PLC Splitters

9 port Fiber Opitcal Fiber Access Terminal FTTA FastConnect Enclosures with 1x8 PLC Splitters

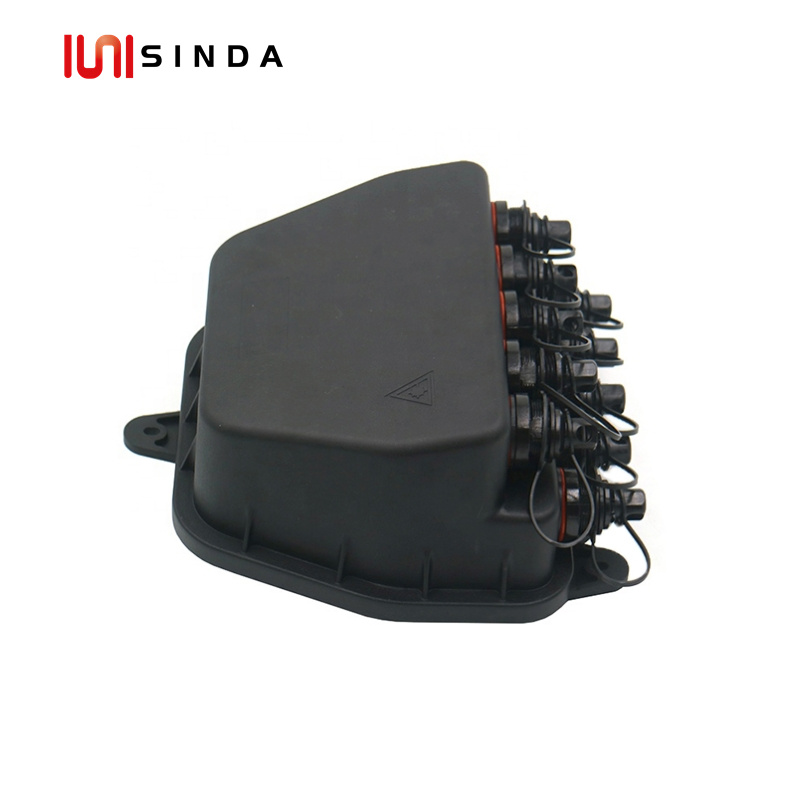

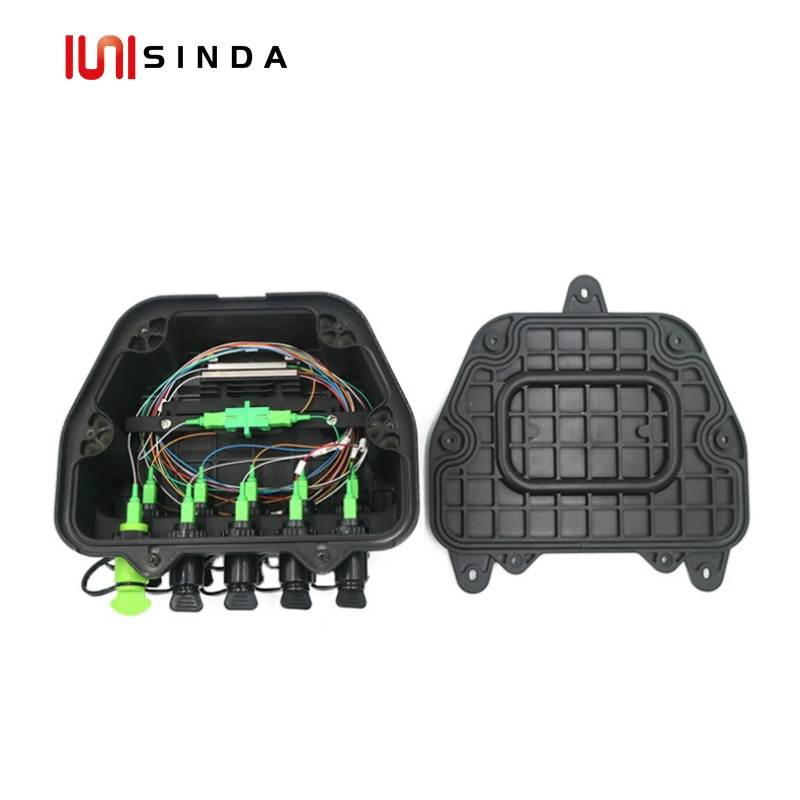

9 port Fiber Opitcal Fiber Access Terminal FTTA FastConnect Enclosures with 1x8 PLC Splitters.Fiber access termination box SD-9A is able to hold up to 8 subscribers. It is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 8 x drop cable in FTTx network system. It integrates fiber splicing, splitting, storage and cable management in one solid protection box.It is a mechanically sealed dome-style FastConnect closure used at access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency and reduces the total cost of operation.

Features

• Total enclosed structure

• Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65

• Plug-and-play installation, easy for maintenance and expansion

• 10x reinforced adapters for drop cable with reinforced connectors

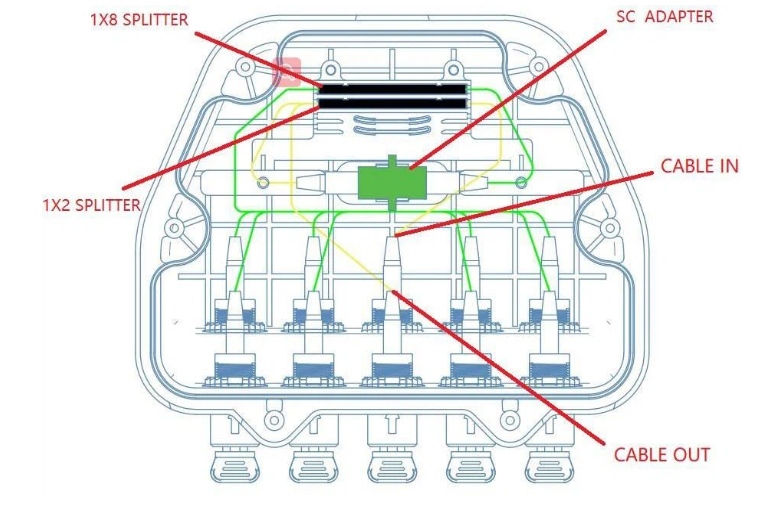

• Compact design integrates distribution, splicing, splitting 3-in-1

• Designated position for the placement of 1:2 and 1:8 PLC splitter

• Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor use

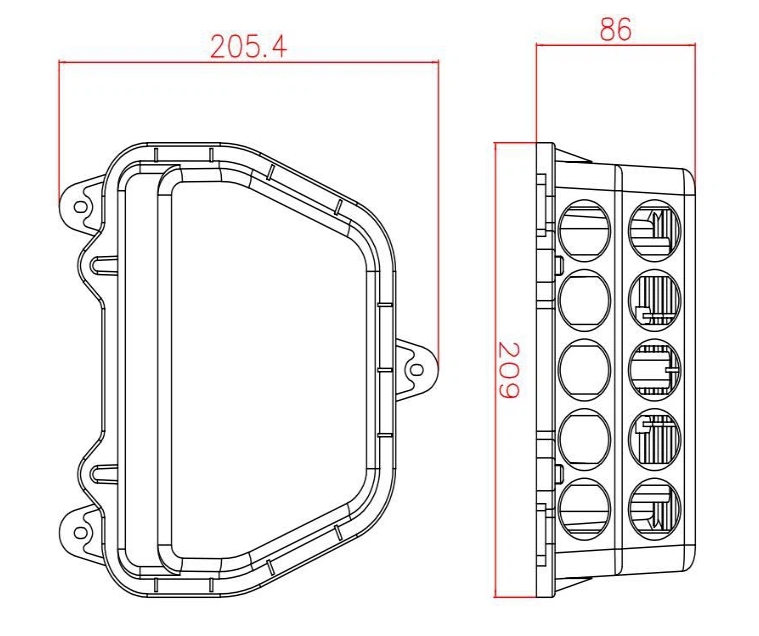

Specifications

About Pre-connection Solutions

Pre-connection solution. In this solution, all boxes and optical cables are pre-installed in the factory, with no fusion points throughout the process; high-quality IP68 protection grade optical splitter boxes, fully sealed design, no need to repeatedly unpack for service activation; supporting MPO cables and 1F cables are all pre-installed with connectors, plug-and-play on site, and quickly deployed; boxes and cables are fully decoupled and can be constructed in parallel. The F.ODN pre-connection solution greatly improves the installation efficiency of ODN products, reduces labor costs by 60%, and improves network fault recovery efficiency by 90%.

Quality Certification
