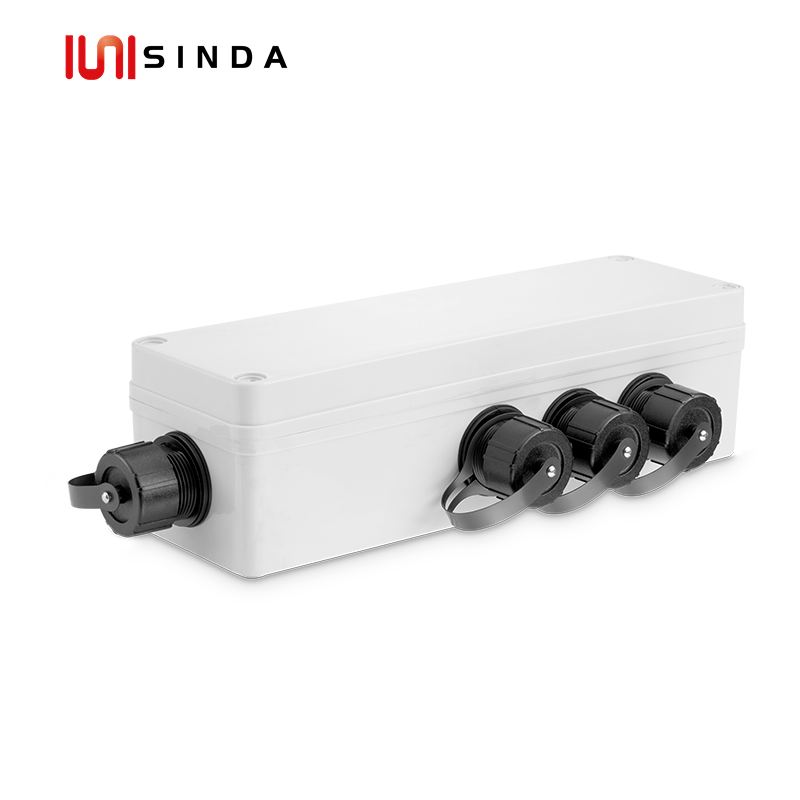

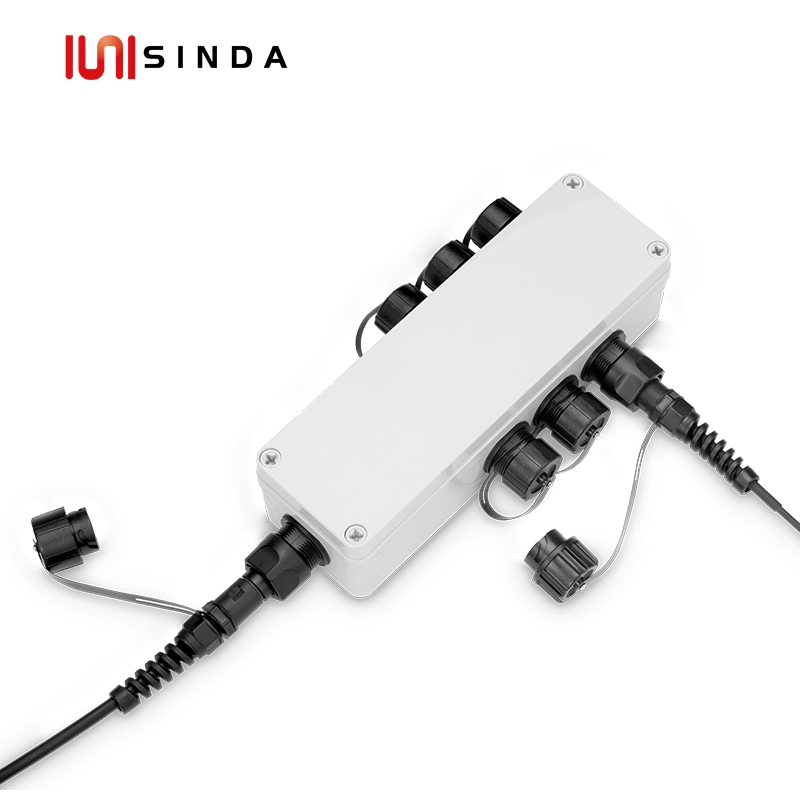

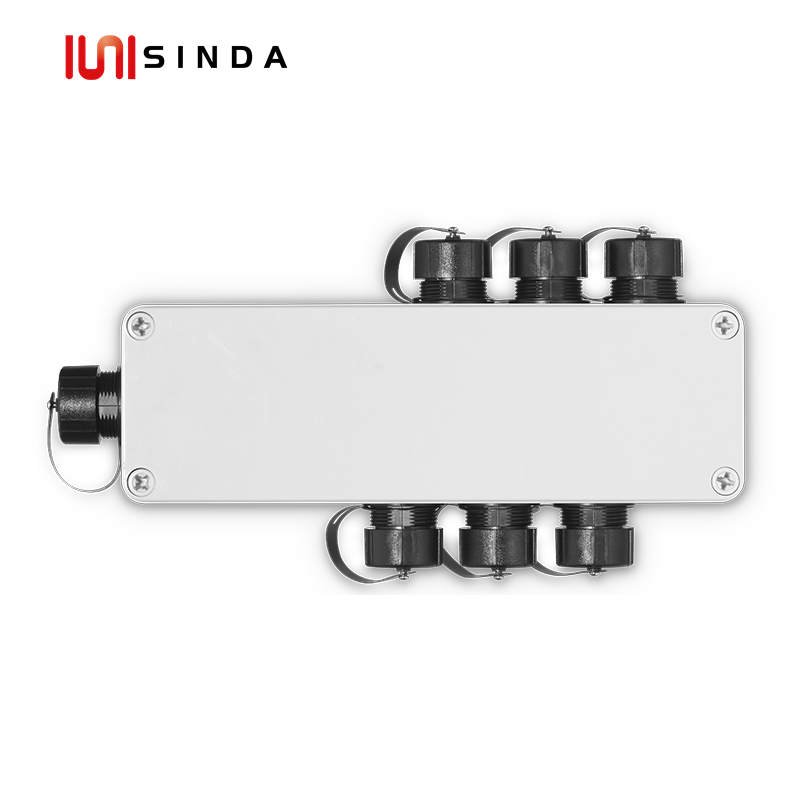

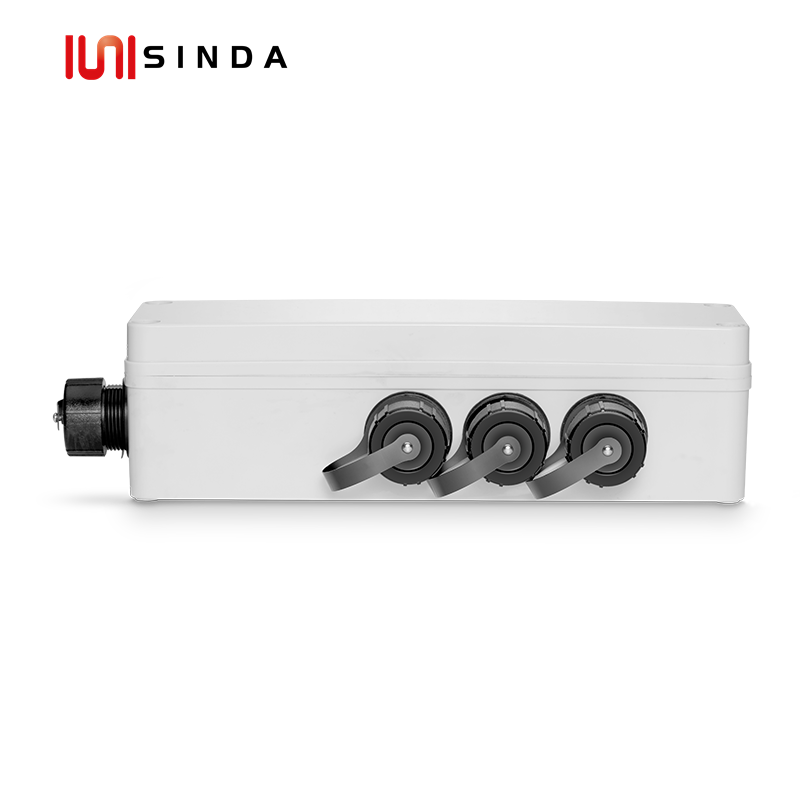

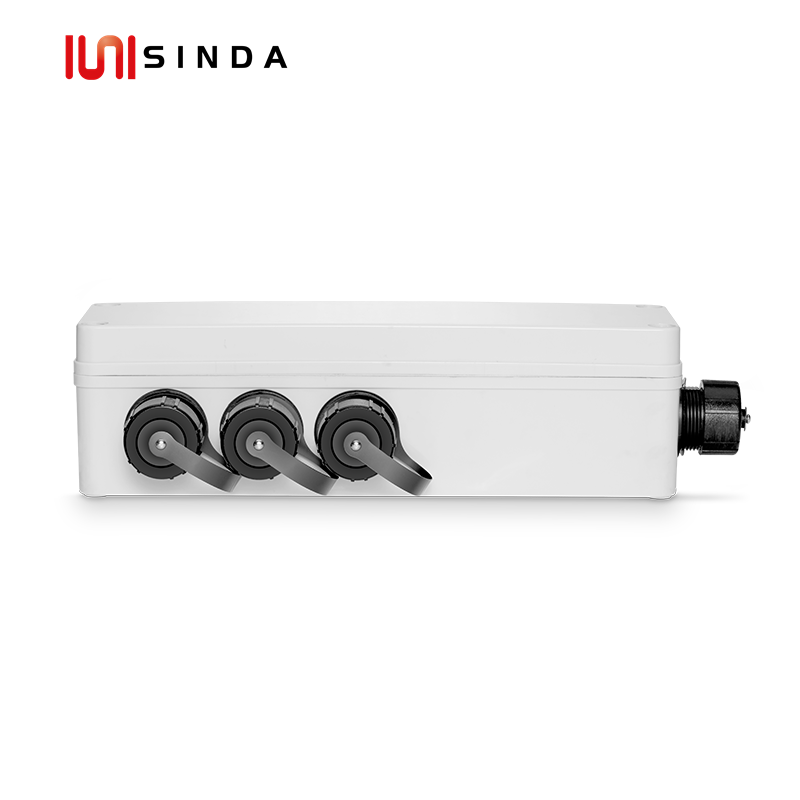

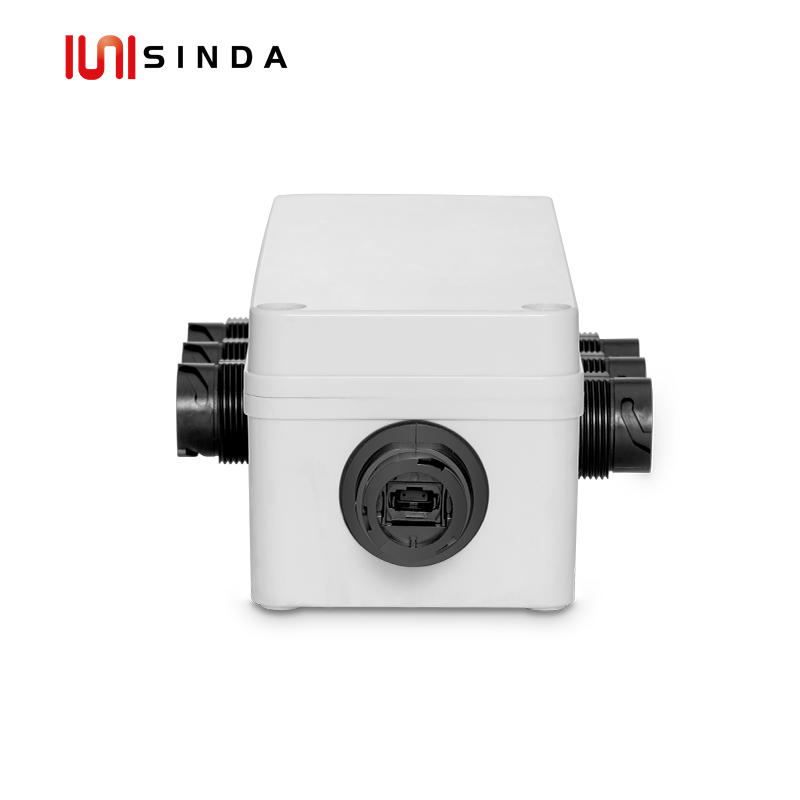

FTTA Waterproof MTP-12 to LC Duplex OS2 Fiber Optical Distribution Box

Fiber optic Hub box with hardened connectors

Factory for 24/48/96core OptiTap hub box

Best price for waterproof distribution box 24/48/96core

Fiber optical waterproof distribution box 24/48/96core factory price

Fiber optical distribution box factory price

FTTA Waterproof MTP-12 to LC duplex OS2 Hub box

FTTA Waterproof MTP-12 to LC Duplex OS2 Fiber Optical Distribution Box

The fiber distribution box is a fast-connect enclosure that is sealed mechanically. It offers a 12-fiber MTP adapter on the rear of the units routed to duplex LC adapters on the side field, which interconnect with high-density fiber cable assemblies.The MTP-LC distribution box has an IP67 protection class that provides waterproof capability and flexible connectivity and demarcation for FTTA applications, including telecommunication networks, data transmission, LAN, deployment in remote radio, and so on.

Chat Now

Description

FTTA Outdoor Waterproof Mini Fiber Optic Distribution Enclosure

Feature

Plug and play, Fast Connect drop cable instead of splicing, be installed without opening the closure;
Fast plug realizes cable fastening and sealing outside the closure leads to fast installation.
Support pole/wall mounting, aerial cable mounting;
Support over ground installation;
Small size and elegant appearance;
IP65 Protection.

Specifications

Parameters	Value
Optical Cable Inlet& Outlet	1x suitable for 5.0mm straight-through cable
Adapter Type	LC Duplex or SC Simplex Hardened adapters
LC or SC Hardened Adapters QTY	6pcs
Installation Mode	Pole/wall-mounting,
Installation Mode	Aerial cable-mounting
Application Scenario	Overground installation
Dimensions	250mm x 70mm x 80mm
Net Weight	0.4KG
Shell Materials	ABS
Color	Light Gray
Protecting Rating	IP65
RoHS	Compliant
Sealing Mode	Mechanical

Storage Temperatures	-40℃ to +70℃
Operating Temperatures	-40℃ to +70℃
Relative Humidity	≤93%

Adapter Insertion Loss	≤0.25 dB
Reseating Durability	＞500 times

Application

Data Transmission;
Telecommunication;
WBN;
LAN Indoor/Outdoor;
Deployment in Remote Radio Head cell tower applications.

Quality Certification

Hot Tags : FTTA Waterproof MTP-12 to LC duplex OS2 Hub box Fiber solution multiport wall mounting Ruggedized Optitap hub box Fiber optical waterproof distribution box 24/48/96core Fiber optical distribution box Waterproof distribution box 24/48/96core 24/48/96core OptiTap hub box
