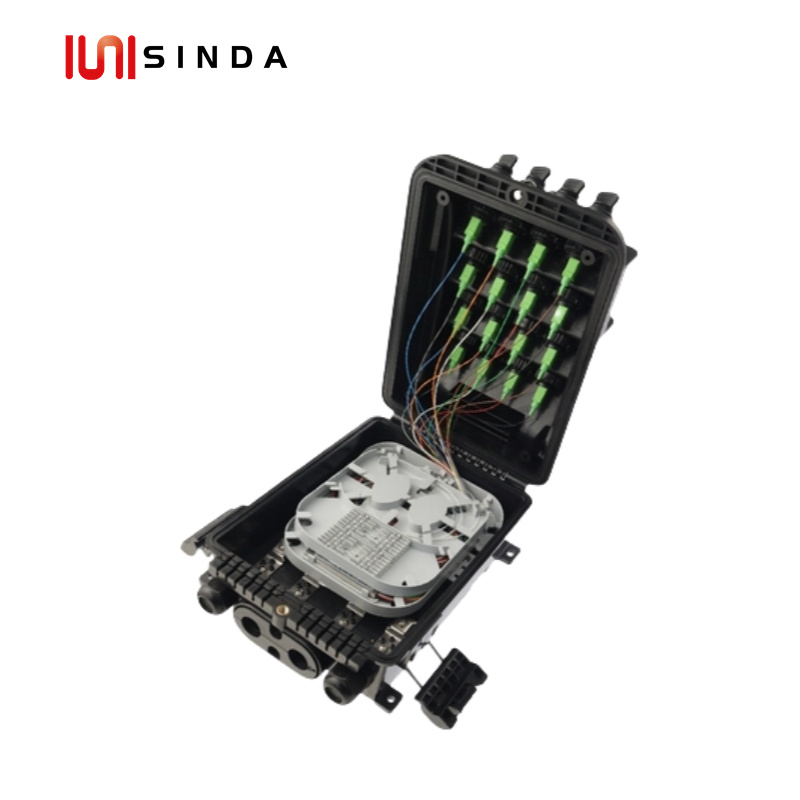

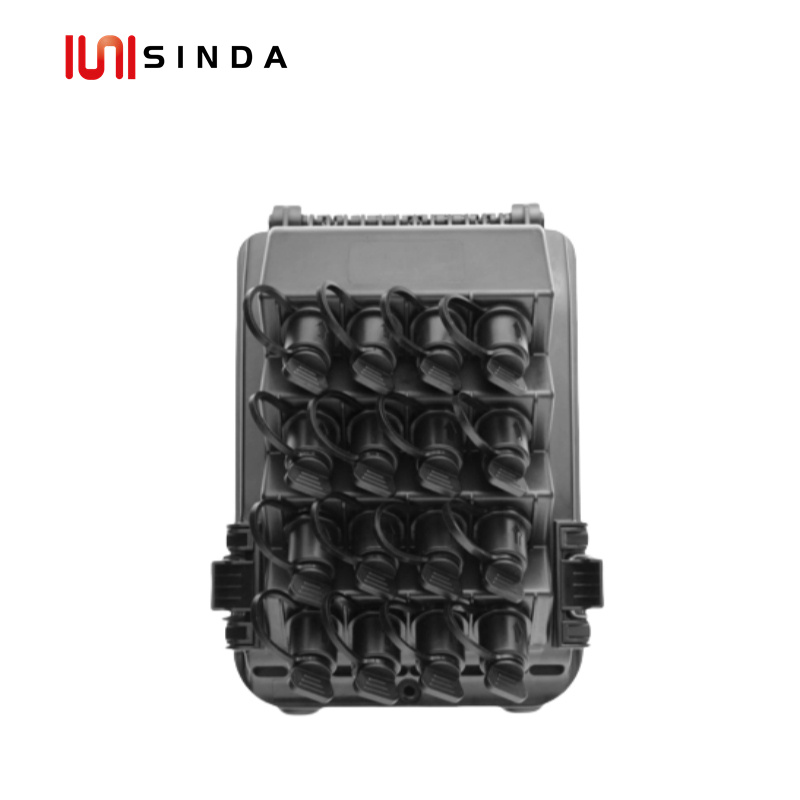

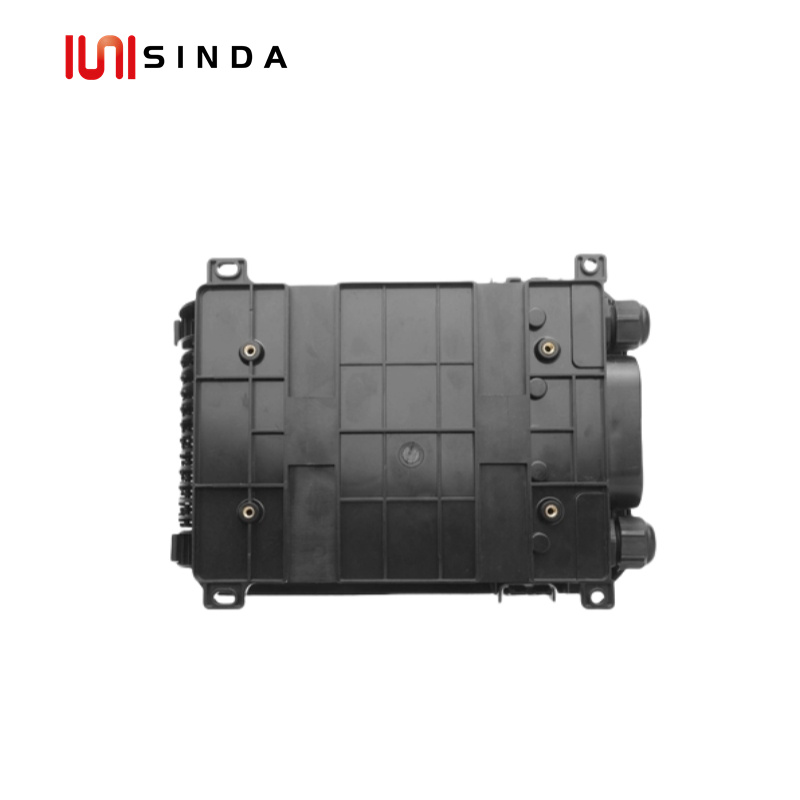

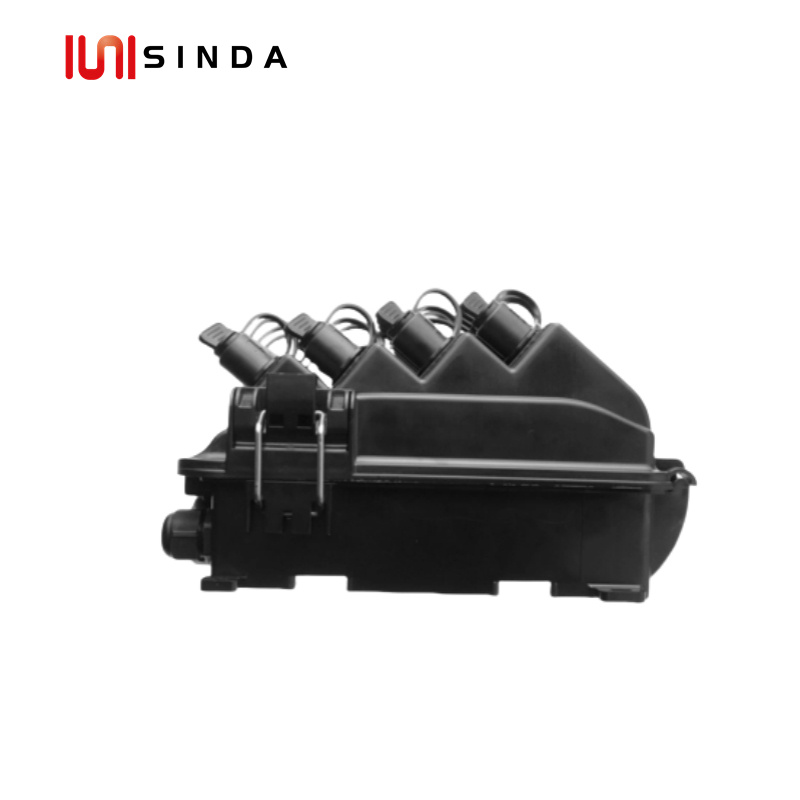

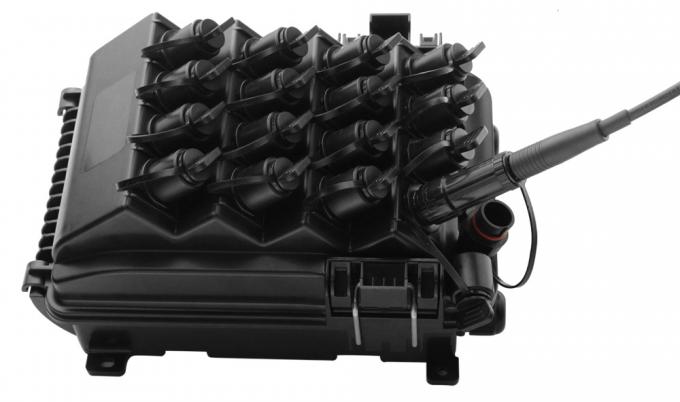

ABS Material Waterproof 16 Ports Fiber Optic Distribution Box

ABS Material Waterproof 16 Ports Fiber Optic Distribution Box is a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Chat Now

Description

ABS Material Waterproof 16 Ports Fiber Optic Distribution Box

The equipment is a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Features

The box is small and lightweight, but it has complete functions and is easy to operate.

Plug and play, pre-connected household cable instead of fusion, no need to open the box.

Fast insertion can fix and seal the optical cable outside the connector box for quick installation.

Support a variety of installation methods, holding poles, hanging walls, and cables.

Unique design front 45-degree angle fiber output.

The drop leaf can be installed in 1 pcs of 1:16 PLC or 2 pcs of 1:8 PLC.

Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65

Technical Parameters

Item	Specifications	Remark
External dimension	242x167x137mm
Distribution Cable ports	2 Round + 1 Oval
Distribution Cable Diameter	Φ5-16mm
Door Cable ports	Max.16 cores
Door Cable Diameter	Depending on the type of connector cable
Splice Tray Capacity	Max.16cores
Support adapter	waterproof adapter
Adapter Capacity(Max)	16 pcs
Support PLC Splitter	1pc 1*16 Type	or 2 pcs of 1:8 PLC.
Material	PC+ABS
Box Color	White	Customizable
IP Protection Level	IP65
Flammability	HB(Conventional)	can be customized according to requirements
Neutral salt spray test(NSS)	168 h
Weight	0.78kg

Applications

1. Optical fiber communication in a harsh outdoor environment.

2. Outdoor communication equipment connection.

3. Pull a far wireless base station.

4. FTTx wiring engineering

Quality Certification

Quality and standards are the foundation of SINDA. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

SINDA has passed many quality system verification, like CE, RoHS, ISO9001,ISO14001, ISO45001 established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber Box is 100% optically inspected before you receive it.

High Quality Guarantee

We admit 100% quality inspection, if there is any quality problem after shipment, we will arrange return or refund the full amount ASAP!
