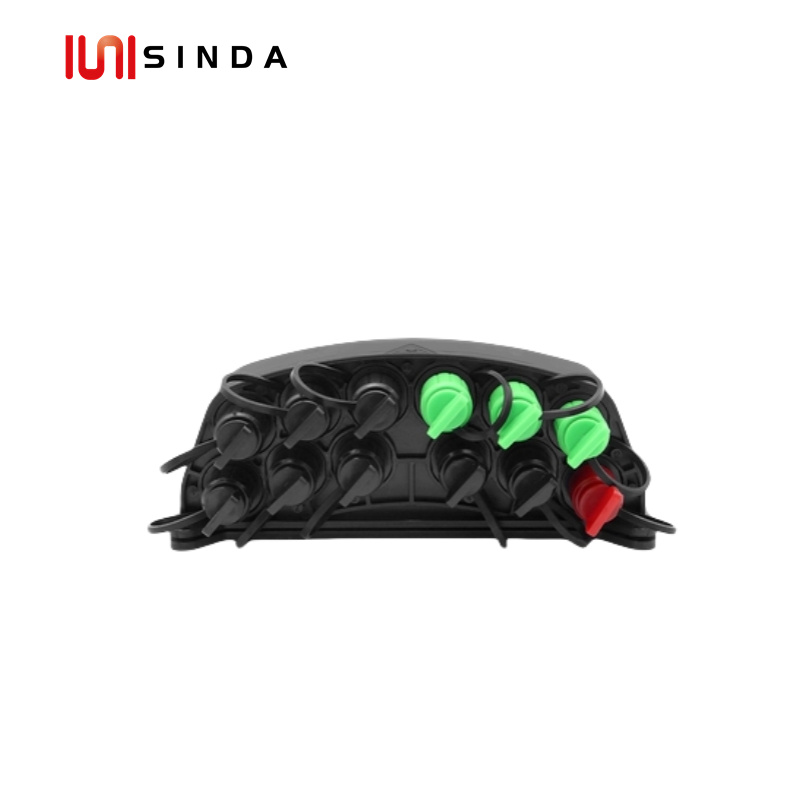

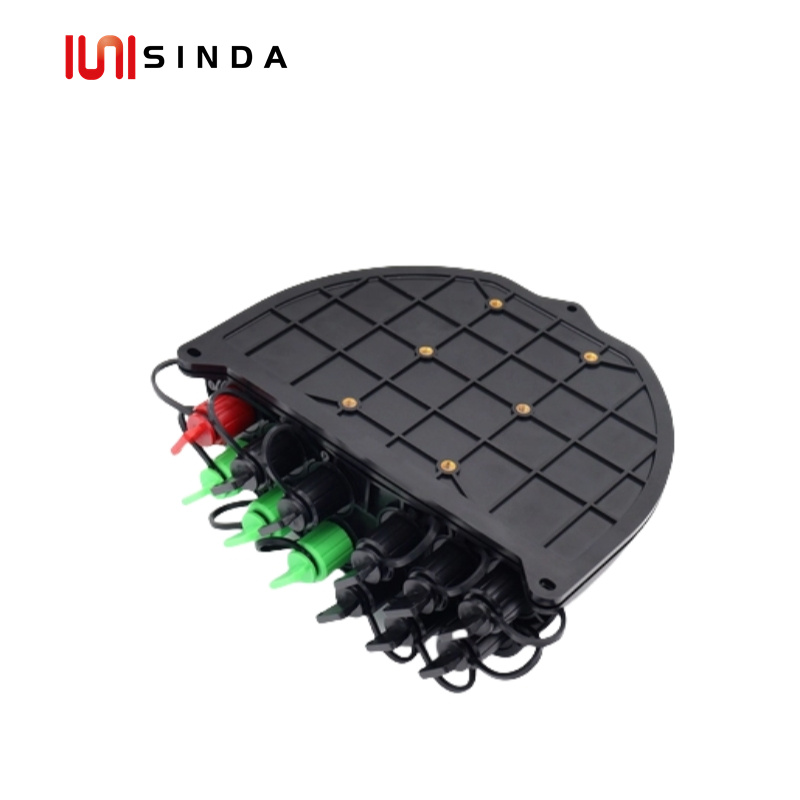

Pre Connectorized 12C fiber distribution terminal Of FTTX Network

Pre Connectorized 12C fiber distribution terminal Of FTTX Network Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is Corning OPT adapter or Huawei Fast connector, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple, easy to install, and no special tools are required.

Chat Now

Description

Pre-connecterized Fiber Distribution Box Application scenarios

Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is Corning OPT adapter or Huawei Fast connector, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple, easy to install, and no special tools are required.

Drawing Pictures

Features

Apply to wall-mounted Hold-up and pole-type installation

High-strength material with good weather adaptability and UV resistance.

Port into the end and leakage design, no need to open the box, easy construction.

Internal multi-wiring, can be independent or combination with different types of PLC Splitter.

Optiatp, Mini SC, Slim, and conventional waterproof adapters can be installed, And these adapters can be distinguished by different colors.

Ultrasonic welding, excellent sealing performance, Waterproof to IP68.

Specification

Item	Spe.	Remark
Size196*158	19615876mm
Passageway	Max.12 core
Configuration	12,14,1*8,
Material	PC+ABS or PC+PBT
Box Color	Black
Adapter Color	Blue, Red, Green, Black
Protection Level	IP68
Operating Temperature	-40～+65℃

Pre-connecterized Fiber Distribution Box Performance (With the connector loss )

	IL		PDL	UNI.	DIR.	RL	Capacity Max.
	Non Fused Output	Fused Output	PDL	UNI.	DIR.	RL	Capacity Max.
1*4	≤7.5	/	≤0.2	≤0.6	≥55	≥55	2pcs
1*8	≤11.0	/	≤0.2	≤0.8	≥55	≥55	1pcs
19(12+1*8)	≤4.3	≤15.0	≤0.2	≤0.8	≥55	≥55	1pcs

About Pre-connection Solutions

Pre-connection solution. In this solution, all boxes and optical cables are pre-installed in the factory, with no fusion points throughout the process; high-quality IP68 protection grade optical splitter boxes, fully sealed design, no need to repeatedly unpack for service activation; supporting MPO cables and 1F cables are all pre-installed with connectors, plug-and-play on site, and quickly deployed; boxes and cables are fully decoupled and can be constructed in parallel. The F.ODN pre-connection solution greatly improves the installation efficiency of ODN products, reduces labor costs by 60%, and improves network fault recovery efficiency by 90%.
